Leave Management Dashboard: Navigation and Leave Operations
The Leave Management Dashboard is your central hub for viewing, creating, and managing leave records across your organization. This comprehensive interface provides an overview of all users' leave statistics and allows you to apply for new leave or update existing leave records through intuitive modal forms.
Introduction: Your Leave Management Command Center
After completing the initial system configuration, the Leave Management Dashboard becomes your primary workspace for monitoring and managing employee leave. This dashboard provides a centralized view of all users in your organization and their respective leave statistics, while also serving as the interface for applying for new leave and updating existing leave records through integrated modal forms.
Key Concept: Integrated Leave Operations The dashboard serves as both a viewing interface for leave statistics and the primary workspace for leave operations - all leave creation and editing happens through modal forms accessed directly from this dashboard.
Dashboard Layout and Navigation
The Leave Management Dashboard is organized into two main sections for optimal workflow efficiency.
Left Panel: User Management
The left side of the dashboard contains the user management interface:
User List Overview
- Total User Count: Displays the total number of users in your organization (e.g., "Users 19")
- Search Functionality: Quick search bar to find specific users by name or initials
- User Directory: Complete list of all users with visual identification
User Selection
- Visual Identification: Each user has colored initials for easy recognition
- Click to Select: Simply click on any user to view their leave information
- Active Selection: Selected users are highlighted with a blue accent
- Alphabetical Organization: Users are typically organized alphabetically for easy browsing
Leave Management Dashboard showing user selection and statistics
Right Panel: Leave Information Display
Once you select a user, the right panel displays their complete leave information:
User Header
- User Identification: Large display of the selected user's name and colored initials
- Quick Actions: "Add Leave" button for immediate leave creation
- Clear Navigation: Easy identification of the currently selected user
Understanding Leave Statistics
The dashboard displays four key leave metrics for each user:
Core Leave Metrics
Total Leaves (Calendar Icon)
- Represents the total number of leave records created for the user
- Includes all leave types and durations
- Provides a quick overview of leave frequency
Total Days (Bar Chart Icon)
- Shows the cumulative number of days taken as leave
- Calculated across all leave records
- Helps track total time away from work
Full Days (Sun Icon)
- Counts complete day leave records
- Represents full working days taken as leave
- Useful for understanding impact on daily operations
Half Days (Moon Icon)
- Tracks partial day leave records
- Includes morning or afternoon leave
- Helps monitor flexible leave usage patterns
Statistical Accuracy: All statistics are updated in real-time as leave records are created, modified, or deleted, ensuring you always have current information.
Leave Record Organization
The dashboard organizes leave records into logical categories for easy navigation:
Leave Record Tabs
All Leaves (Default View)
- Shows complete leave history for the selected user
- Highlighted in green when active
- Provides comprehensive overview of all leave activity
Today
- Displays any leave scheduled for the current date
- Useful for daily attendance tracking
- Shows immediate leave status
Upcoming
- Lists future leave records
- Helps with planning and coverage arrangements
- Shows scheduled time off
Past
- Contains completed leave records
- Useful for historical reference and reporting
- Maintains complete leave history
Empty State Display
For users with no leave records:
First-Time User Experience
- Clear message: "No leave records found"
- Helpful explanation: "This user hasn't taken any leaves yet"
- Action guidance: "Create their first leave record to get started"
- Prominent "Add First Leave" button for easy access
Managing Leave Operations from the Dashboard
Quick Actions Available
Leave Creation
- "Add Leave" button always visible in top right for any user
- "Add First Leave" button appears for users with no existing records
- Direct access to leave application modal
- Streamlined workflow for immediate leave creation
Leave Management
- Edit functionality through pencil icon on each leave record
- Delete option through trash icon with confirmation modal
- Record viewing with complete leave details and status
Navigation Efficiency
- No page reloads when switching between users or operations
- Modal-based interface for all leave operations
- Fast filtering and search responses
- Smooth transitions between different views and actions
Conflict Detection and Handling
The system includes built-in conflict detection for leave applications:
Conflict Notifications
- Red notification appears: "Leave conflict detected"
- System checks for overlapping leave dates
- Prevents duplicate or conflicting leave records
Resolution Process
- Review conflicting dates and adjust as necessary
- Modify leave duration or dates to resolve conflicts
- System guides users through conflict resolution
Conflict Handling: If a leave conflict is detected during application, review the existing leave records and adjust dates or duration to ensure no overlapping leave periods.
Applying for Leave from the Dashboard
The dashboard provides direct access to leave application through the "Mark User Leave" modal form:
Initiating Leave Application
For Users with No Leave Records:
- Click the "Add First Leave" button in the center of the dashboard
- This opens the "Mark User Leave" modal for creating the user's first leave record
For Users with Existing Leave Records:
- Click the "Add Leave" button in the top right corner
- This opens the same "Mark User Leave" modal for adding additional leave
The "Mark User Leave" Modal
When you click either leave creation button, a comprehensive modal form appears:
User Information Section:
- Displays the selected user's name and colored initials
- Confirms which user the leave is being created for
Duration Type Selection: Choose from three duration options:
- Full Day: Complete day off (labeled "Complete day off")
- Half Day: Partial day leave ("First half or second half")
- Long Duration: Extended periods ("Multiple days with mixed types")
Form Fields:
- Date: Enter date in DD/MM/YYYY format with calendar picker support
- Leave Type: Required dropdown selection (marked with *)
- Reason: Required text field for leave justification (marked with *)
Form Actions:
- Cancel: Close modal without saving changes
- Mark Leave: Submit and create the leave record

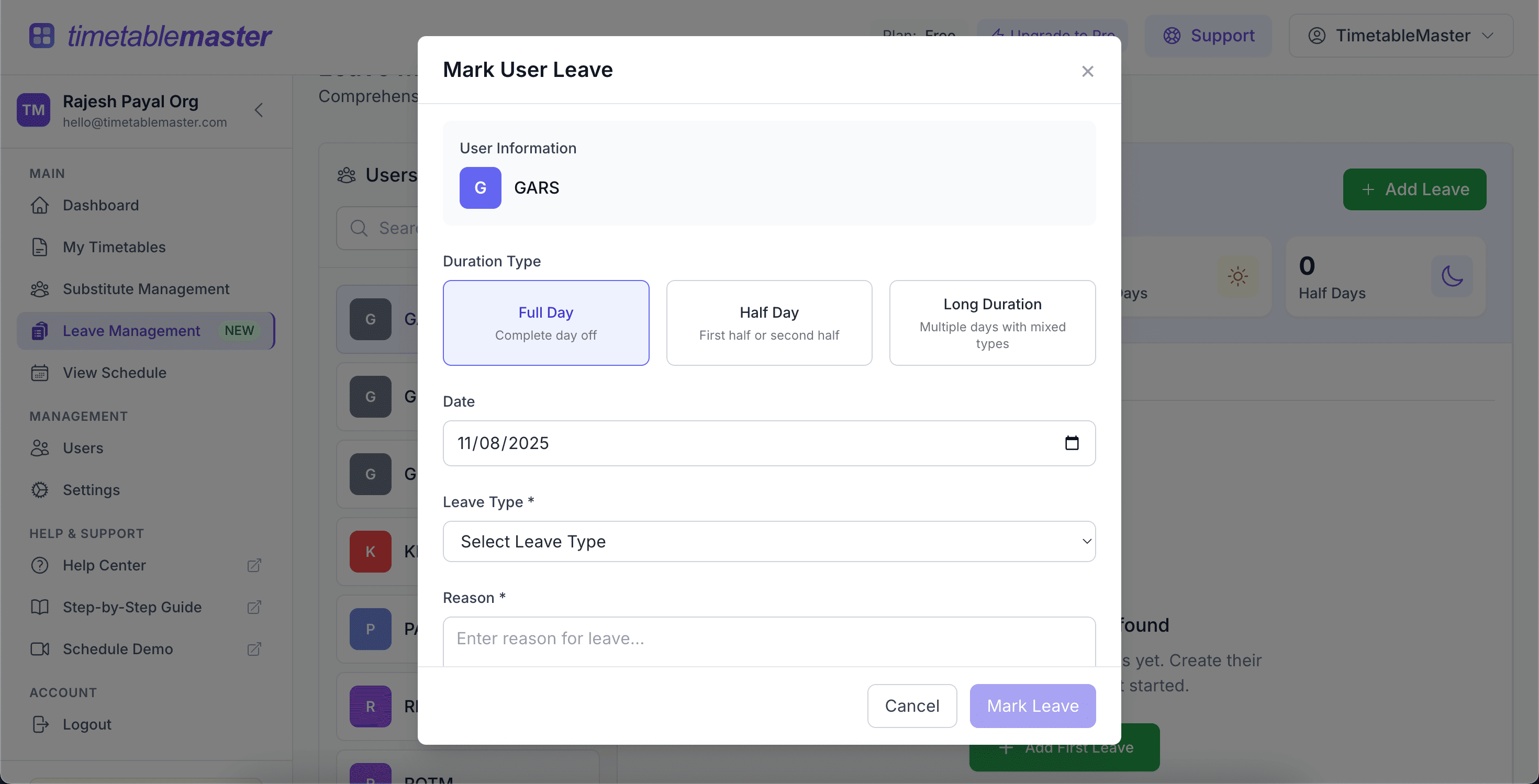

Mark User Leave modal showing application form with duration types and required fields
Leave Application Process
- Select User: Choose the user from the left panel
- Open Form: Click "Add Leave" or "Add First Leave"
- Complete Details: Fill in duration, date, leave type, and reason
- Submit: Click "Mark Leave" to create the record
- Immediate Update: Dashboard statistics and records update instantly
System Response: The leave application creates an immediate record in the system with real-time updates to all dashboard statistics and leave organization tabs.
Updating Existing Leave Records
The dashboard also provides functionality to modify existing leave records through the "Edit User Leave" modal:
Accessing Leave Editing
Locate Leave Record:
- Find the specific leave record in the dashboard display
- Each leave record shows as a card with complete information
Initiate Edit:
- Click the edit (pencil) icon on the right side of any leave record
- This opens the "Edit User Leave" modal with pre-filled information
The "Edit User Leave" Modal
The editing interface uses the same form structure as creation but with existing data:
Pre-filled Information:
- User information remains the same
- Current duration type is pre-selected
- Existing date appears in the date field
- Current leave type is shown in the dropdown
- Previous reason text is displayed
Modification Process:
- Change any field as needed (duration, date, type, reason)
- All fields remain editable and follow the same validation rules
- Required fields (Leave Type and Reason) must still be completed
Form Actions:
- Cancel: Close modal without saving changes
- Update Leave: Save modifications to the existing record

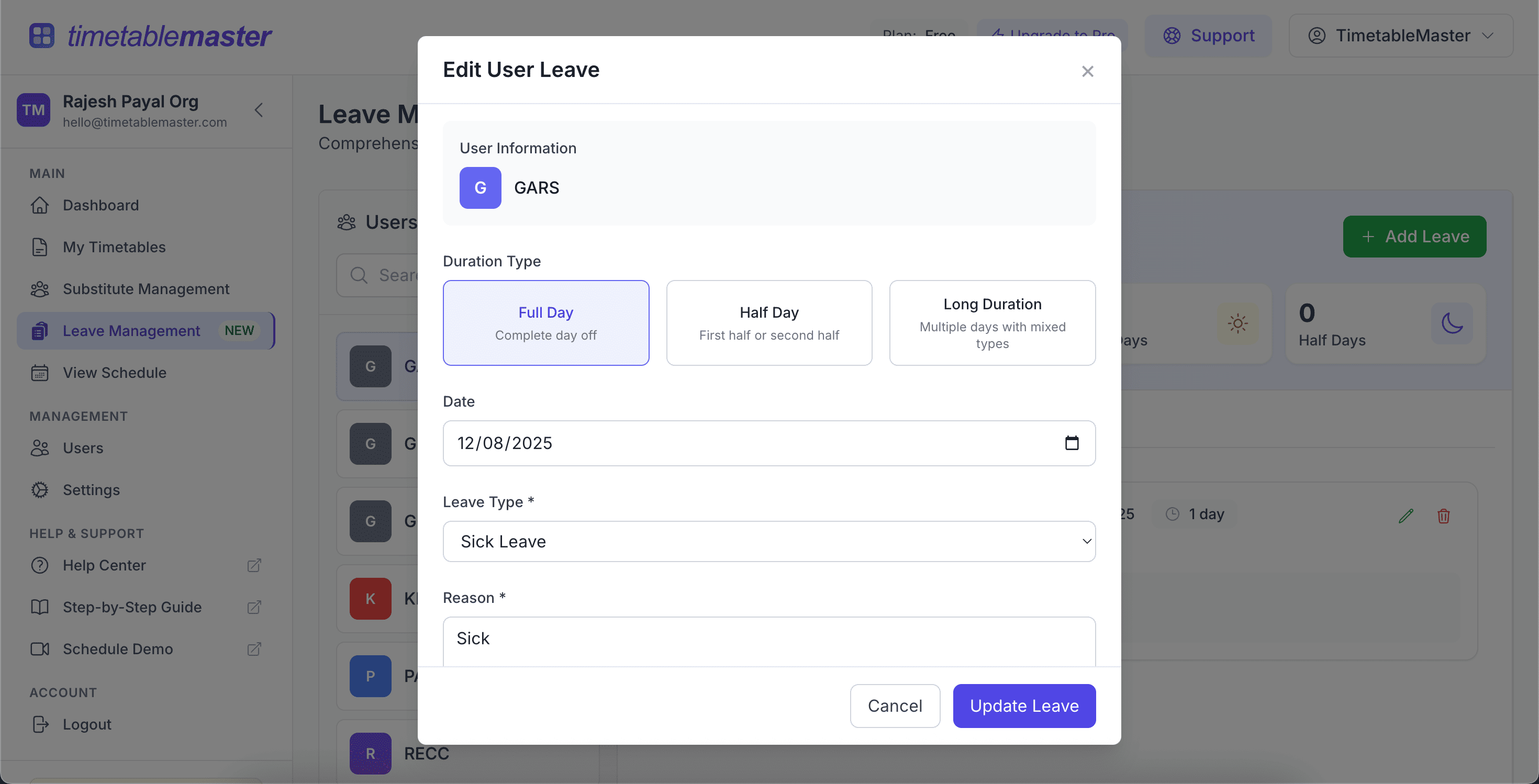

Edit User Leave modal showing pre-filled form data ready for modification
Leave Update Process
- Find Record: Locate the leave record to modify in the dashboard
- Open Editor: Click the pencil icon to open edit modal
- Modify Fields: Change any information as needed
- Save Changes: Click "Update Leave" to apply modifications
- Real-time Refresh: Dashboard immediately reflects all changes
Important: Changes to leave records immediately update all dashboard statistics and may affect leave categorization (Today/Upcoming/Past) based on new dates.
Best Practices for Dashboard Use
Daily Monitoring
Regular Check-ins
- Review today's leave to understand current staffing
- Check upcoming leave for planning purposes
- Monitor leave patterns for resource allocation
User Management
- Use search function for quick user location
- Switch between different users to compare leave usage
- Track leave trends across departments or roles
Data Interpretation
Understanding Metrics
- Compare full days vs. half days to understand leave preferences
- Monitor total days to track leave balance usage
- Use leave frequency data for policy decisions
Pattern Recognition
- Identify users with unusual leave patterns
- Spot trends that might indicate systemic issues
- Plan coverage based on historical leave data
Troubleshooting Common Issues
User Not Found
- Check spelling in search bar
- Verify user is properly set up in the system
- Contact administrator if user should be visible
Statistics Not Updating
- Refresh the browser page
- Check if recent leave records were properly saved
- Verify user permissions for viewing leave data
Performance Issues
- Clear browser cache if dashboard loads slowly
- Check internet connection for search delays
- Contact support if problems persist
Next Steps from the Dashboard
The dashboard serves as your starting point for various leave management activities:
- Create New Leave: Use the "Add Leave" button to start the leave application process
- Review Leave Patterns: Analyze user statistics to understand leave trends
- Plan Coverage: Use upcoming leave information for staffing decisions
- Generate Reports: Export data for detailed leave analysis
Dashboard Navigation Checklist:
- Can access and navigate the user list effectively
- Understand all four leave statistics displayed
- Can switch between different leave record tabs
- Know how to apply for leave using "Add Leave" or "Add First Leave"
- Can edit existing leave records using the pencil icon
- Familiar with search functionality for finding users
- Understand conflict detection and resolution process
Perfect! You now understand the Leave Management Dashboard and how to perform leave operations. Proceed to explore the detailed leave application process and after applying workflows for complete system mastery.
